How to ensure proper grounding of a fume hood?

Ensuring proper grounding of a fume hood is crucial for the safety and efficiency of laboratory operations. As a fume hood supplier, I understand the significance of this aspect and am here to share some key insights on how to achieve proper grounding.

Understanding the Importance of Grounding

Grounding a fume hood serves multiple purposes. Firstly, it protects users from electrical shock. In a laboratory environment, where various electrical equipment is used, there is always a risk of electrical malfunctions. A properly grounded fume hood provides a safe path for electrical current to flow into the ground, preventing it from passing through the user. Secondly, grounding helps to reduce the risk of electrostatic discharge (ESD). ESD can cause damage to sensitive electronic components and may even ignite flammable substances in the fume hood. By providing a conductive path to the ground, grounding dissipates static charges and minimizes the potential for ESD. Finally, proper grounding can improve the performance of the fume hood's ventilation system. It helps to reduce electrical interference, ensuring that the fans and other electrical components operate smoothly and efficiently.

Steps to Ensure Proper Grounding

1. Select the Right Grounding System

The first step in ensuring proper grounding is to select the appropriate grounding system for your fume hood. There are two main types of grounding systems commonly used in laboratories: the equipment grounding conductor (EGC) and the grounding electrode system (GES).

The EGC is a conductor that connects the non - current - carrying metal parts of the fume hood, such as the cabinet and the exhaust duct, to the electrical panel's grounding bus bar. This provides a low - resistance path for fault currents to flow back to the source, tripping the circuit breaker in case of a short circuit.

The GES consists of grounding electrodes, such as ground rods or plates, which are buried in the ground outside the building. The fume hood is connected to the GES through the EGC, providing a connection to the earth. This helps to dissipate static charges and provides an additional layer of protection against electrical faults.

When choosing a grounding system, it is important to consult local electrical codes and regulations. These codes specify the requirements for grounding in laboratory settings and ensure that the grounding system is safe and effective.

2. Inspect the Fume Hood for Grounding Points

Before installing the fume hood, carefully inspect it for grounding points. Most fume hoods are designed with dedicated grounding terminals or connection points. These points are usually located on the frame or the electrical enclosure of the fume hood. Make sure that these grounding points are clean, free of corrosion, and in good condition. If any of the grounding points are damaged or corroded, they should be repaired or replaced before installation.

3. Install the Grounding Conductor

Once you have identified the grounding points, install the grounding conductor. The grounding conductor should be a copper wire of an appropriate size, as specified by local electrical codes. The size of the wire depends on the electrical load of the fume hood and the length of the grounding path.

Connect one end of the grounding conductor to the grounding point on the fume hood and the other end to the electrical panel's grounding bus bar or the grounding electrode system. Use proper connectors, such as crimp connectors or grounding lugs, to ensure a secure and low - resistance connection. Make sure that the connections are tight and free of any loose strands of wire.

4. Check the Continuity of the Grounding Circuit

After installing the grounding conductor, use a continuity tester to check the continuity of the grounding circuit. A continuity tester is a simple device that checks if there is a complete electrical path between two points. Connect the tester to the grounding point on the fume hood and the grounding electrode system or the electrical panel's grounding bus bar. If the tester indicates continuity, it means that the grounding circuit is intact. If there is no continuity, check the connections and the grounding conductor for any breaks or loose connections.

5. Test the Grounding Resistance

In addition to checking the continuity of the grounding circuit, it is also important to test the grounding resistance. The grounding resistance should be within the acceptable range specified by local electrical codes. A high grounding resistance can indicate a problem with the grounding system, such as a poor connection or a faulty grounding electrode.

To test the grounding resistance, use a grounding resistance tester. This device measures the resistance between the grounding point on the fume hood and the earth. Follow the manufacturer's instructions for using the tester and record the test results. If the grounding resistance is higher than the acceptable range, take steps to reduce it, such as adding additional grounding electrodes or improving the connections.

Special Considerations for Different Types of Fume Hoods

Auxiliary Air Fume Hood

[Auxiliary Air Fume Hood](ventilation - equipment/fume - hood/auxiliary - air - fume - hood.html) is designed to provide additional air supply to the fume hood, reducing the impact on the laboratory's HVAC system. When grounding an auxiliary air fume hood, it is important to ensure that both the fume hood and the auxiliary air supply unit are properly grounded. The grounding conductors for both components should be connected to the same grounding system to ensure a uniform electrical potential.

PP Acid - Resistant Laboratory Cabinet

[PP Acid - Resistant Laboratory Cabinet](ventilation - equipment/fume - hood/pp - acid - resistant - laboratory - cabinet.html) is made of polypropylene, which is a non - conductive material. However, the electrical components inside the cabinet, such as the fans and the lighting, still need to be grounded. When grounding a PP acid - resistant laboratory cabinet, make sure that the grounding conductor is connected to the metal parts of the electrical components and then to the grounding system.

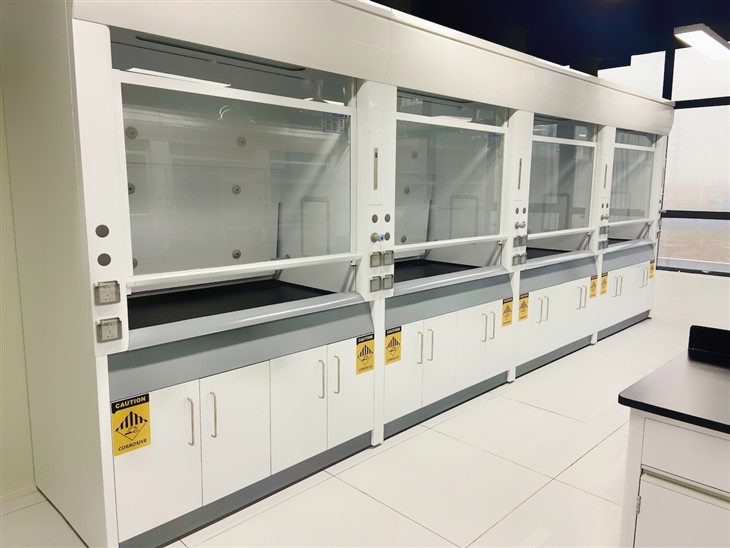

Smart Fume Hood With VAV And Electric Sash

[Smart Fume Hood With VAV And Electric Sash](ventilation - equipment/fume - hood/smart - fume - hood - with - vav - and - electric - sash.html) is equipped with advanced control systems and electronic components. These components are sensitive to electrical interference and static charges. Therefore, proper grounding is even more important for a smart fume hood. In addition to grounding the main fume hood structure, the control panels, sensors, and other electronic components should also be grounded separately to ensure their reliable operation.

Regular Maintenance and Inspection

Proper grounding is not a one - time task. It requires regular maintenance and inspection to ensure its continued effectiveness. Here are some maintenance and inspection tips:

• Visual Inspection: Regularly inspect the grounding conductors, connections, and grounding points for any signs of damage, corrosion, or loose connections. If any problems are found, repair or replace the affected components immediately.
• Continuity and Resistance Testing: Periodically test the continuity and resistance of the grounding circuit using a continuity tester and a grounding resistance tester. Compare the test results with the previous records to detect any changes in the grounding system.
• Electrical System Upgrades: If the laboratory's electrical system is upgraded or modified, make sure that the grounding system of the fume hood is also updated accordingly to meet the new requirements.

Conclusion

Ensuring proper grounding of a fume hood is essential for the safety and performance of laboratory operations. By following the steps outlined above, including selecting the right grounding system, inspecting and installing the grounding conductor, testing the continuity and resistance, and considering the special requirements of different types of fume hoods, you can ensure that your fume hood is properly grounded.

If you are in the market for a fume hood or need assistance with grounding your existing fume hood, please feel free to contact us for more information and to discuss your specific requirements. Our team of experts is ready to help you make the right choice and ensure the safety and efficiency of your laboratory.

References

• National Fire Protection Association (NFPA). NFPA 70: National Electrical Code.
• Occupational Safety and Health Administration (OSHA). Electrical safety standards for the workplace.
• American National Standards Institute (ANSI). ANSI Z9.5: Laboratory Ventilation.
