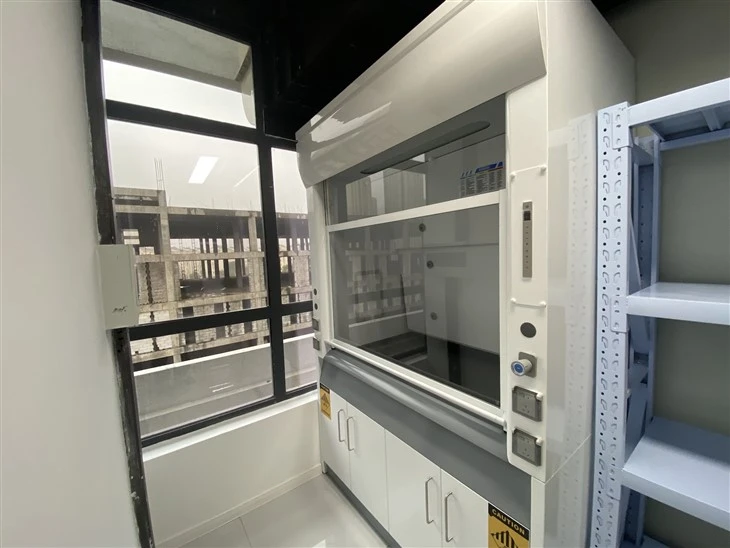

Smart Fume Hood With VAV And Electric Sash
Meets ASHRAE certification requirements and has an official report.
- Product Introduction
Product Overview:
Our YAOYAN series Fume Hood provides a reliable, safe, and efficient solution for laboratory ventilation. Designed to meet stringent international quality standards, this fume hood is ideal for laboratories, universities, research centers, and more. With cutting-edge features and robust construction, the YAOAYN fume hood ensures the safety of lab personnel and optimizes air quality. Available models include: YAOYAN-1200, YAOYAN-1500, YAOYAN-1800.
Products Specifications:
| Model | YAOYAN-1200 | YAOYAN-1500 | YAOYAN-1800 |
| External Dimension (W × D × H) | 1200mm x 950mm x 2350mm | 1500mm x 950mm x 2350mm | 1800mm x 950mm x 2350mm |
| Work Area Dimensions (W x D x H) | 940mm x 630mm x 1180mm | 1240mm x 630mm x 1180mm | 1540mm x 630mm x 1180mm |
| Air Volume required | 595m³/h | 631m³/h | 706m³/h |
| Face Velocity | 0.5±0.1m/s | ||
| Frame | ≧ 1.0 mm cold-rolled steel, epoxy powdercoated | ||
| Inner liner&baffle | 5 mm thick white phenolic resin board,double-sided glossy finish | ||
| Sash |
Vertical sliding, counterweight balanced,5 mm tempered glass with aluminum alloyframe. Max opening: 780 mm |
||
| Lighting | 30 W (approx. 800 lux) | ||
| Worktop | Material: phenolic resin / stainless steel/ceramic / epoxy resin. Height: 850 mm | ||
| Sockets | Multi-standard waterproof sockets x 4 | ||
Product Features:
1. Superior Ventilation Performance:
• Passes international certification standards for performance (China, Europe, USA).
• Face Velocity: 0.3–0.6m/s with minimal deviation (±0.035m/s).
• Tracer Gas Concentration Test: Leak rate ≤0.000ppm for maximum safety.
2. Laboratory Safety Certified:
• Conforms to the GB/T 6412-1999 and ASHRAE 110-2016 standards for fume hood performance.
• Certified by CMA and CNAS-accredited institutions.
• Anti-fall safety features to protect workers in case of sashmalfunction.
3. Durable Construction:
• Made with 1.0mm cold-rolled steel and epoxy resin powder coating for excellent corrosion resistance.
• 5mm thick phenolic resin board for inner liner with superior impact and heat resistance.
• High-strength tempered safety glass sash (≥5mm thickness) for reliable safety.
4. Energy Efficient Design:
• Sash Window: Large opening (up to 780mm) with ergonomic handle design.
• Smooth Operation: Sash moves with low force, minimal noise, and precise alignment.
• Lighting: Integrated LED system with an illumination of ≥800LUX for clear workspace visibility.
5. Easy Maintenance & Upgrade:
• Maintenance-friendly structure with access channels, removable components, and a built-in inspection window.
• Allows the addition of water and gas valves and other fittings easily.
why choose us?
• Reliability & Durability: Built to withstand the toughest laboratory environments with premium materials and meticulous construction.
• Advanced Performance: Our fume hood exceeds industry standards, ensuring excellent airflow and air quality to protect your lab workers.
• Global Certification: Compliant with international standards, offering assurance of quality and safety.
• Easy Maintenance: Designed with serviceability in mind, the YAOYAN fume hood provides easy access for repairs and upgrades.
