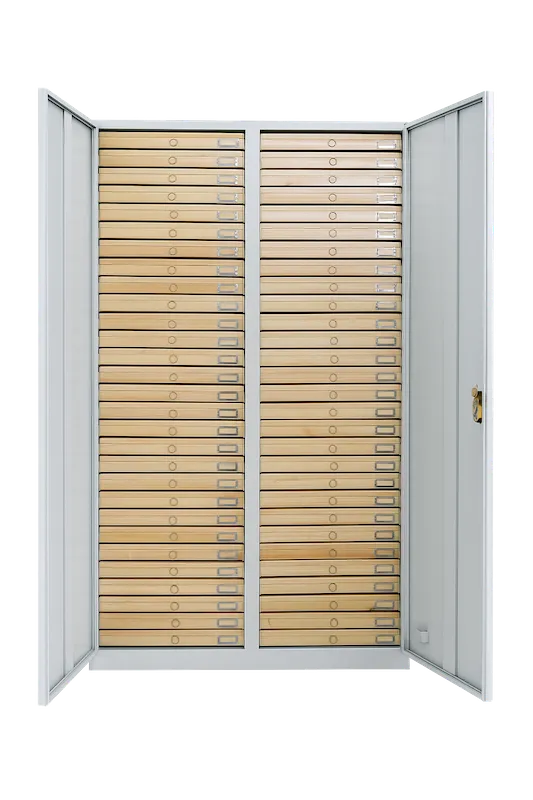

Insect Specimen Cabinet
Designed for the long-term preservation of insect specimens, while ensuring convenient classification and retrieval.
- Product Introduction
Products Description
Structure and Capacity
This cabinet adopts a double-unit design, each unit containing 25 drawers, for a total of 50 drawers. Each drawer accommodates a wooden specimen box, allowing specimens to be easily placed and removed. The tight arrangement of specimen boxes maximizes storage capacity, while each box is equipped with an exchangeable external label, facilitating clear classification and efficient retrieval for research personnel.
Cabinet Specifications:
Type: Compact (dense-type) specimen storage cabinet
Dimensions: 1120 mm × 2150 mm × 450 mm
Material: Electrolytic steel plate, thickness 1.0 mm
Weight: Approx. 190 kg
Structure: Fully sealed design to prevent insect intrusion and protect stored specimens
Surface Treatment:
Acid washing, alkali washing, and phosphating for superior rust and corrosion resistance
Coated with imported solid plastic powder (particle size 25–45 μm)
Electrostatic powder coating and 200 °C high-temperature curing for a smooth, glossy, and uniform surface with no particles, bubbles, or residue
The coating's adhesion strength is over 10 times higher than ordinary paint
Reinforced door panel with internal stiffeners
All welded parts use CO₂ gas-shielded welding for durability and neat appearance
Specimen Boxes:
External Dimensions: 500 mm × 400 mm × 60 mm
Internal Height: > 50 mm
Material: Anti-corrosive wood
Lid: Transparent glass cover
Customization: Box size can be tailored according to customer requirements
